3D Piping Engineering and Design

Using a single platform design package, Piping Layout is able to produce seamless designs from concept to completion.

To get started, hover over the slides and use the Left/Right arrow buttons to navigate among them:

  • Piping and Instrumentation Diagram (P&ID)

    Piping and Instrumentation Diagram (P&ID)

    Piping Layout Consultants will assist the owner with creating, maintaining, and producing as-built P&ID's.  The P&ID is the main control document on the project and we pride ourselves in keeping  "Master Mark-ups" as the project is designed.

  • 3D Modeling

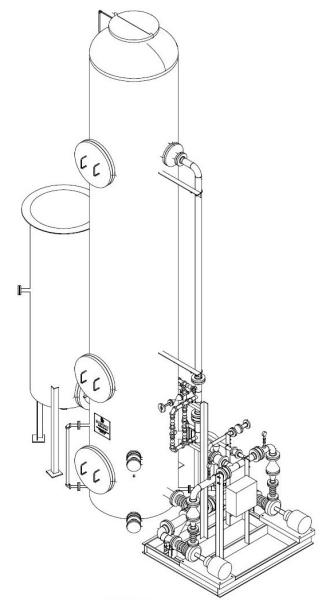

    3D Modeling

    PLC uses a database driven 3D platform that allows us to produce a quality product in a fraction of the time of traditional 2D design.

  • Model for Review

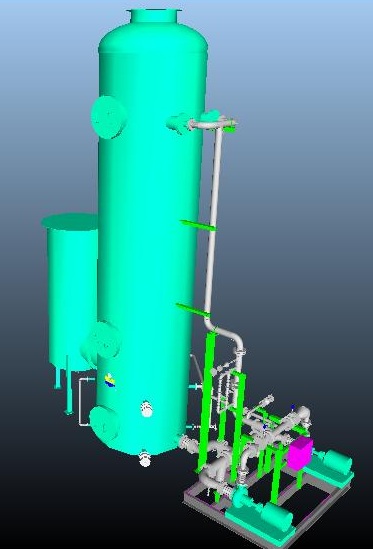

    Model for Review

    Piping Layout provides free tools to allow our clients to review model progress.

  • Piping Plan

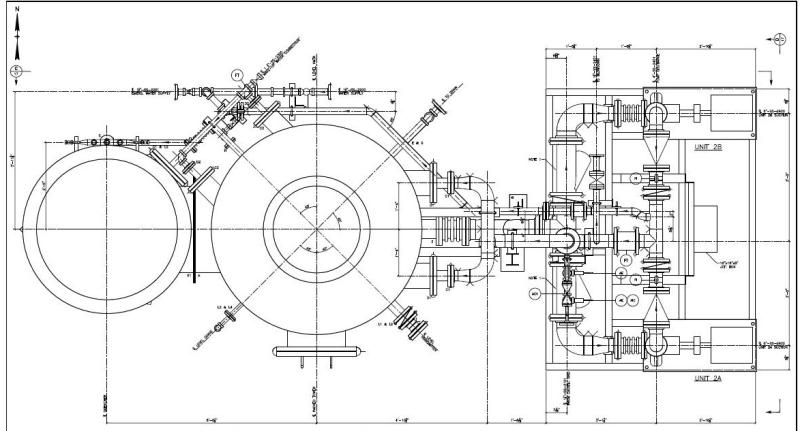

    Piping Plan

    Piping plans are quickly produced from the 3D model for use by the installation contractor.

  • Piping Section

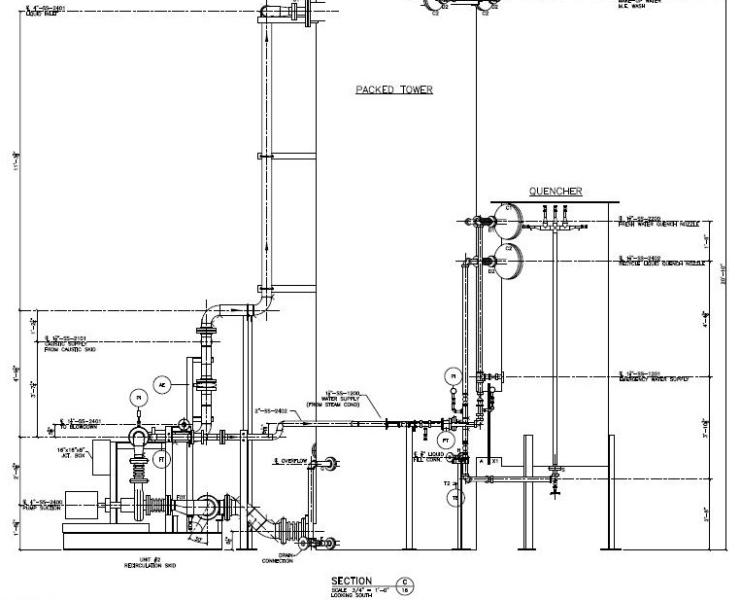

    Piping Section

    Piping sections are quickly produced from the 3D model for use by the installation contractor.

  • Fabrication Isometric

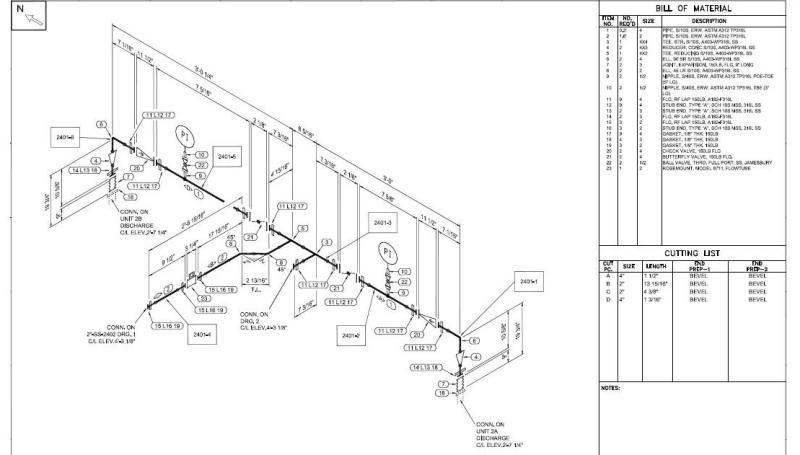

    Fabrication Isometric

    Fabrication isometrics are extracted from the 3D model.  Each iso can be customized  to show pipe cut lengths, weld numbers, spool numbers and a complete bill of material.
